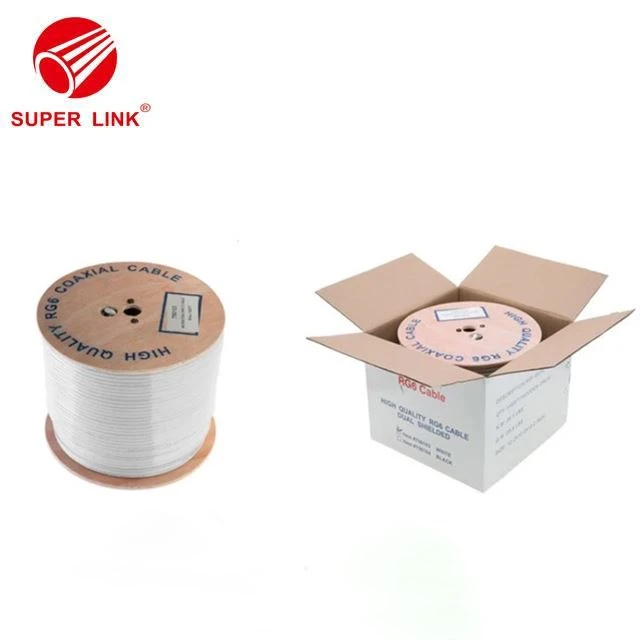

Telekomunikasi Tipis Rg59 RG6 Rg7 Rg8 Rg11 Kabel Coaxial CCTV CATV HDTV Kamera Kabel Plat Kayu
RG6 KONSTRUKSI DASAR 75OHM:
| TRI-SHIELD | QUAD-SHIELD | ||
| BAHAN | SM/CCS | SM/CCS | SM/CCS |
Nomor Dia. | 18AWG | 18AWG | 18AWG | |
| BAHAN | busa PE | busa PE | busa PE |
Nomor Dia. | 4.57mm | 4.57mm | 4.57mm | |
| BAHAN | Al Foil{}Al Mengepang | Al Foil+Al Mengepang+Al Foil | (Al Foil+Al Mengepang)*2 |
CAKUPAN | 40%-95% | 40%-95% | 40%-60% | |
| BAHAN | PVC/PE | PVC/PE | PVC/PE |
Nom.Tebal. | 0.80mm | 0.80mm | 0.86mm | |
Nomor Dia. | 6.91mm | 7.06mm | 7.62mm |
Kemasan& Pengiriman:
Detail Kemasan:
Paket: 305m dalam kotak,
2 kotak dalam karton
Ukuran karton: 40*37*37cm
Redaman @68°F(20℃) | |||
Frekuensi (MHz) | Maksimum (dB/100m) | Frekuensi (MHz) | Maksimum (dB/100m) |
5 | 1.9 | 865 | 20.01 |
55 | 5.25 | 1000 | 21.49 |
187 | 9.35 | 1200 | 26.16 |
300 | 11.64 | 1450 | 27.73 |
450 | 14.43 | 1800 | 31.15 |
600 | 16.73 | 2200 | 31.92 |
750 | 18.54 | 3000 | 37.5 |
